Four Common Mounting Methods for Industrial Cabinet Air Conditioners

The installation method of an industrial cabinet air conditioner directly affects its cooling efficiency, maintenance convenience, and spatial layout. This article outlines four common installation methods and provides selection guidance based on typical application scenarios.

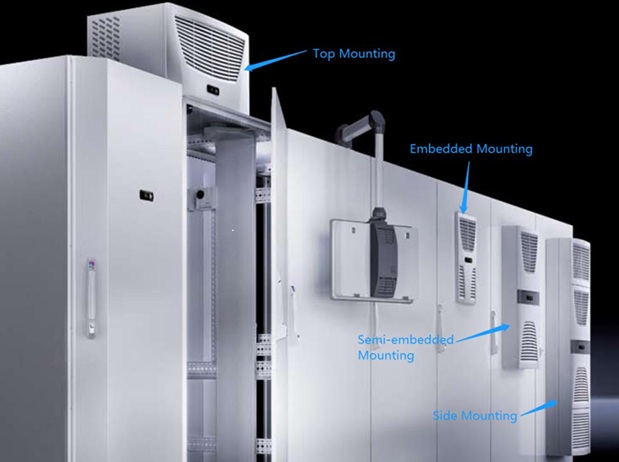

I. Four Main Installation Methods

·Top Mounting
Suitable for locations with stable overhead support and limited floor space. It offers efficient heat extraction and a high degree of protection against dust and water ingress.

·Semi-embedded Mounting
Part of the unit is recessed, balancing aesthetics with effective heat dissipation. Suitable for compact spaces where full protrusion needs to be minimized.

·Side Mounting
Installed on the side panels of the cabinet, offering high flexibility. Applicable where top or embedded mounting is not feasible.

·Embedded Mounting
The air conditioner unit is recessed into the cabinet structure, providing a clean, integrated appearance and robust protection. Ideal for environments with high aesthetic or severe environmental requirements.

II. Recommended Installation Methods for Different Cabinet Types

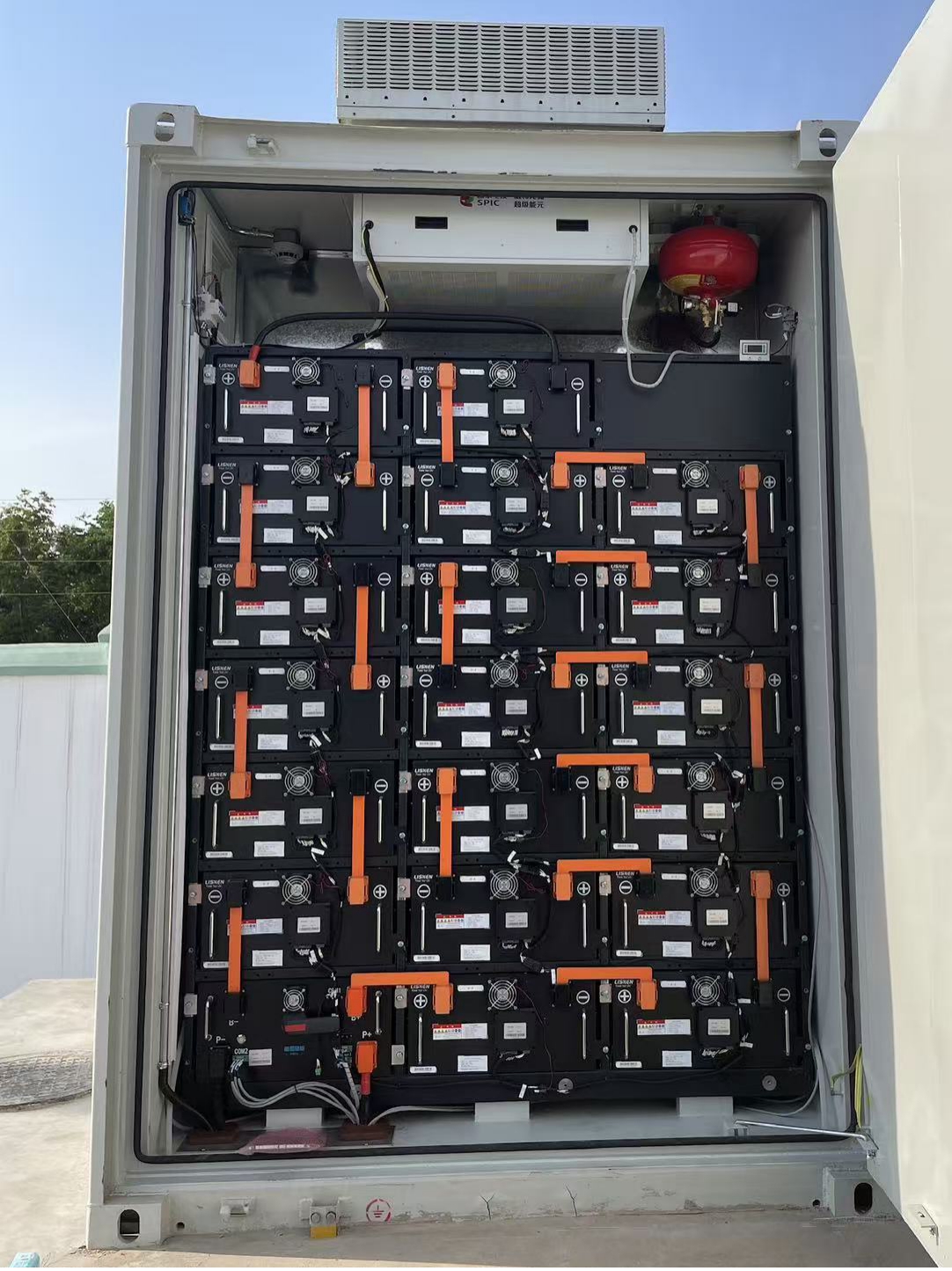

·Energy Storage Battery Cabinet
Characterized by high thermal load and demanding environmental control requirements. Top mounting (for efficient heat rejection and easy sealing) or side mounting (for strong load-bearing and easier maintenance) are preferred.

·Industrial Control Cabinets (e.g., PLC Cabinets)
Often located in complex environments with diverse layout constraints. Suitable options include top mounting,side mounting, or semi-embedded mounting, depending on the specific site layout and maintenance needs.

·Outdoor Telecommunication Cabinet
Require high ingress protection (IP) ratings for outdoor use. Top mounting (offering good rain protection and security) or semi-embedded mounting (providing excellent sealing and an integrated appearance) are recommended.

III. Key Installation Considerations

·Cabinet air conditioners are typically designed for mounting on cabinet panels or doors.

·They must be installed vertically, with a maximum tilt angle of 2°. Inverted or horizontal installation is not permitted.

·The distance between the cabinet air conditioner panel and the wall or other cabinet air conditioner panels should be greater than 200mm.

·To ensure uniform cooling inside the cabinet, a minimum distance of 200 mm is recommended between the air conditioner's cold air outlet and internal components.

·To minimize condensate accumulation, consider using accessories such as door limit switches and condensate evaporators.

Proper installation is crucial for ensuring the stable and efficient operation of industrial cabinet air conditioners. LANDKING provides professional installation solutions and technical consultation. Please contact our team for support.
